Solar System Protection PV Rapid Shutdown YRSD-4A
YRSD-4A
Rapid shutdown of the photovoltaic system, is a switch to quickly shut down the connection between photovoltaic module and inverter. It's a necessary regulation device for solar power systems to have a rapid shutdown in case of emergencies.
Quantity
The Solar System Protection PV Rapid Shutdown YRSD-4A is a cutting-edge device designed to ensure the safety and protection of your solar panel system.
- This innovative device features fast and reliable PV rapid shutdown functionalities, is used to disconnect the direct current between solar panels and inverter, remove the DC high voltage in the PV string, allowing for quick and efficient shutdowns of your entire system in case of emergencies such as fires or electrical hazards.
- Rapid Shutdown YRSD-A series firefighter safety switch is typically installed in a weatherproof enclosure, and it features a lockable handle that can be easily operated with gloves on. The switch is capable of interrupting up to 1000 volts DC and has a maximum current rating of 32 amperes. The switch is also equipped with arc suppression technology to prevent arcing during the switching process.

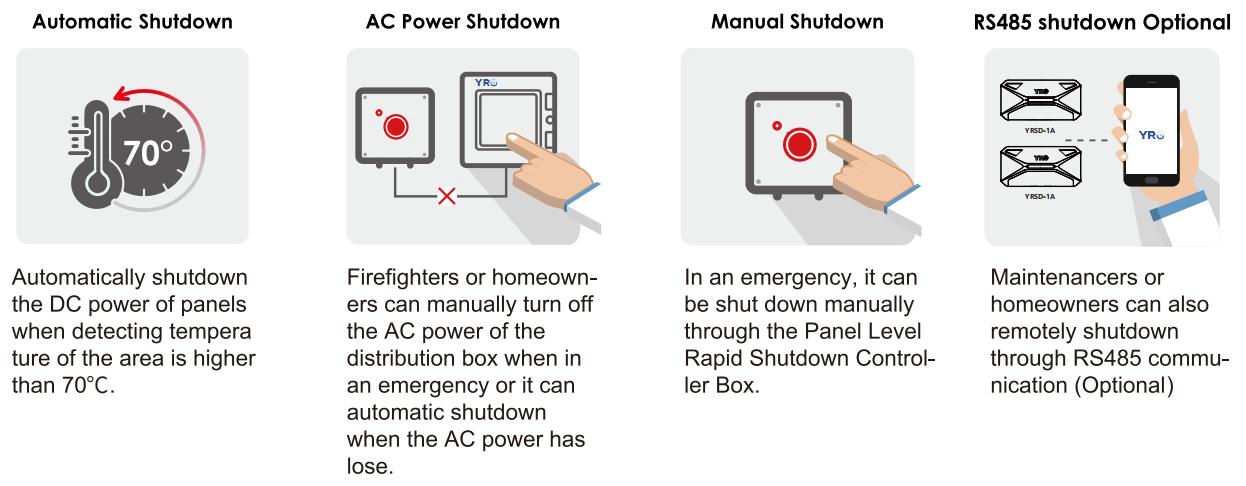

- Shutdown Mode
- Technical data

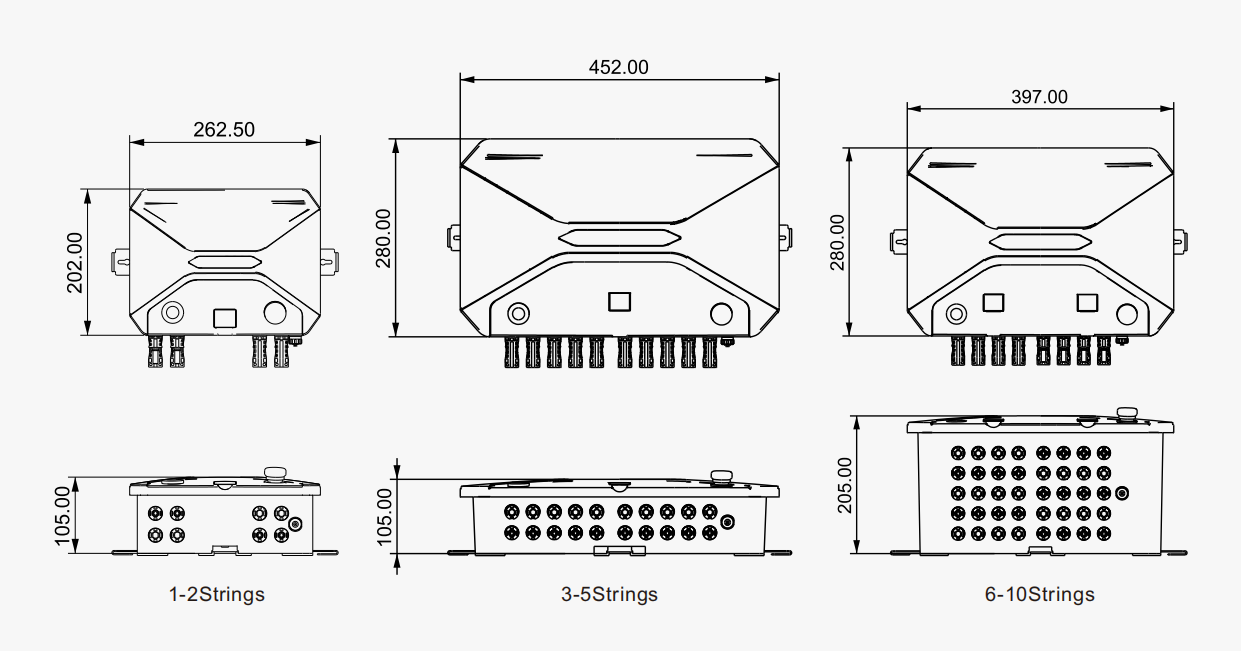

- Dimensions of YRSD
