Module-Level Rapid Shutdown Devices YRSD-P
YRSD-P
YRO Rapid Shutdown is a DC-breaking device used in photovoltaic system, it can limit the electric range and even DC voltage. To guarantee the safe of firefighters in the process of fire fighting and rescue of facilities installed with photovoltaic power generation system, and has no risk of electric shock.
Quantity
YRSD-P Rapid Shutdown Devices are cutting-edge technological advancements in solar energy technology that guarantee safer solar installations. These devices ensure module-level rapid shutdown in case of power disturbances, like inverter trips and grid outages. With YRSD-P Rapid Shutdown Devices, workers and first responders can safely disconnect solar panels during an emergency. The devices are easy to install, durable, and cost-effective. With YRSD-P Rapid Shutdown Devices, promote peace of mind and ensure workplace safety.
High Craftsmanship and Standards

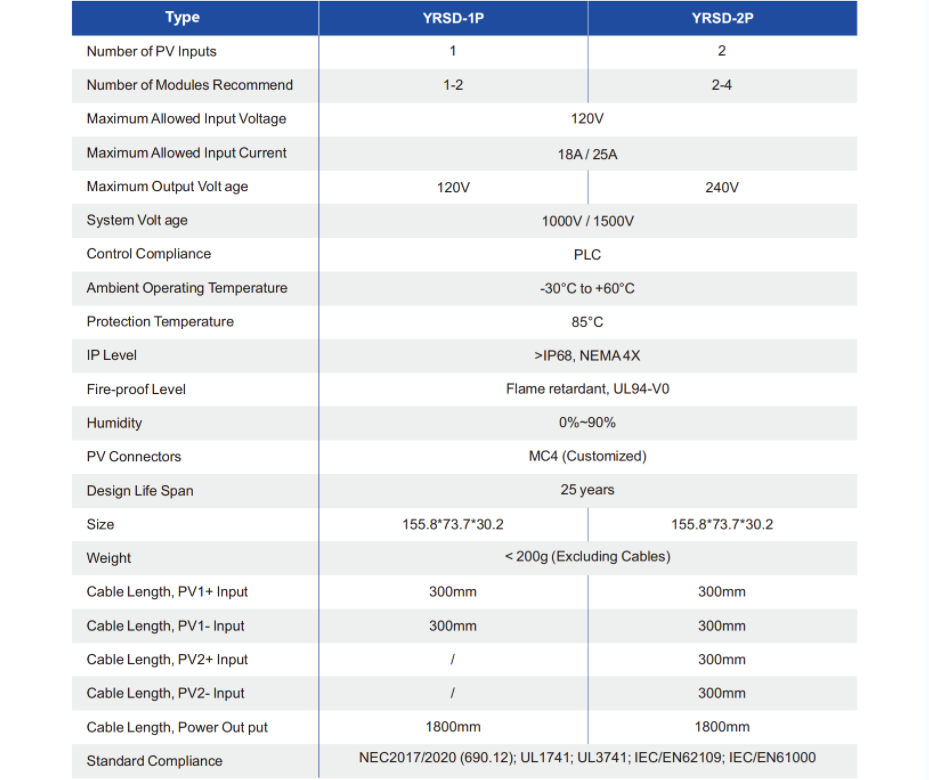

Technical Data
Summary

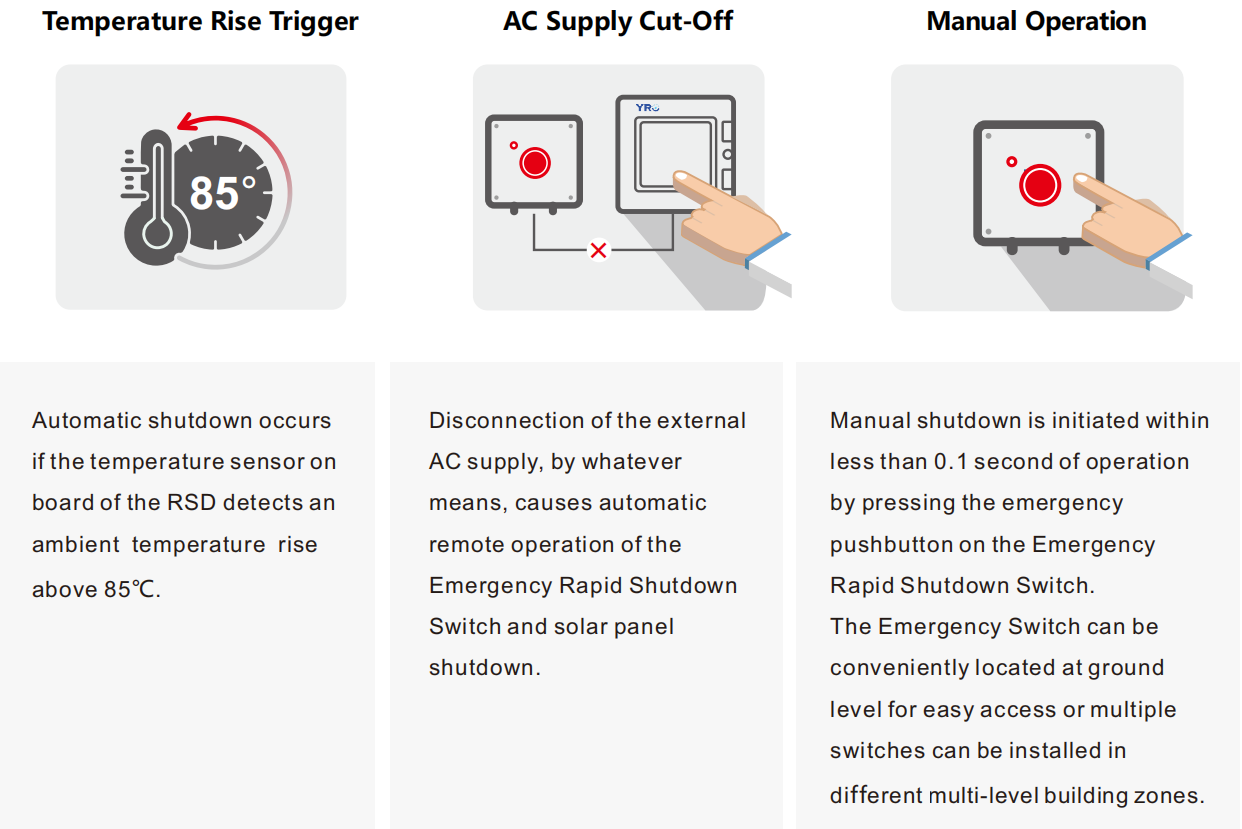

The YRO Modular level RSD DC 24V Series Overview is designed to be installed at solar panel level and provides safety shutdown of the DC supply to ZERO VOLTS in case of emergency. Shutdown is initiated in 3 ways - Manual Operation, AC Supply Cut-Off or Temperature Rise Trigger as follows:

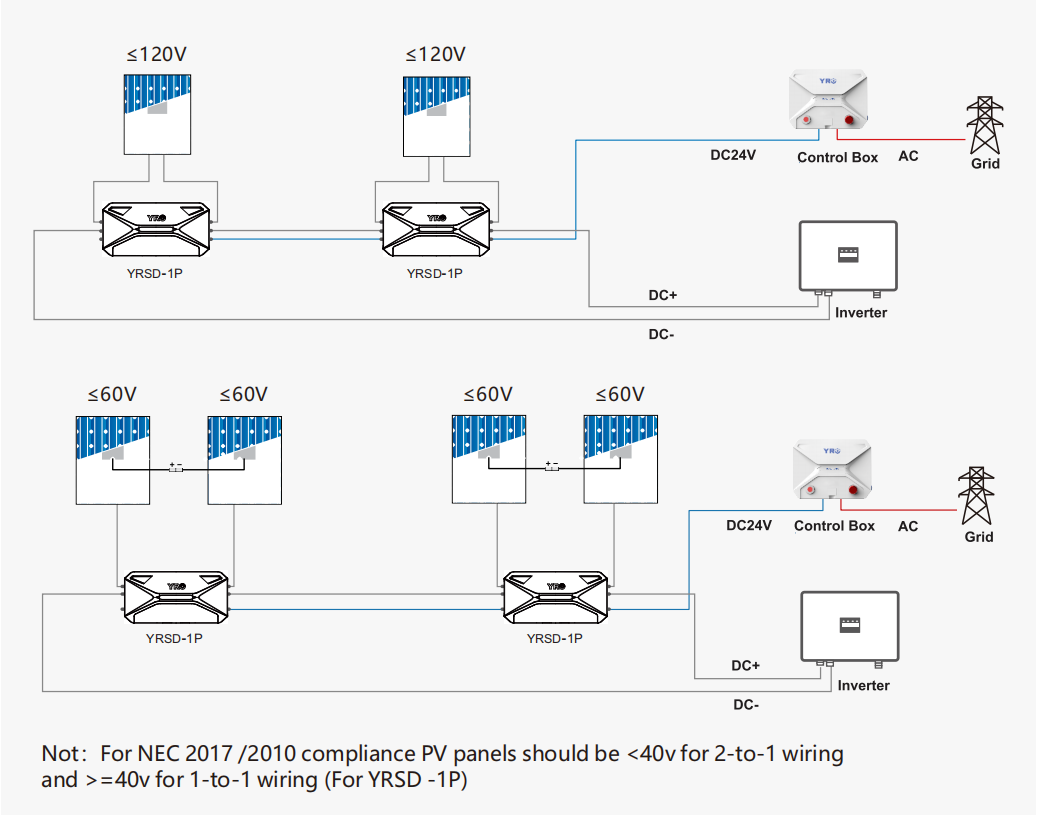

YRSD-1 P 1-to- 1 wiring

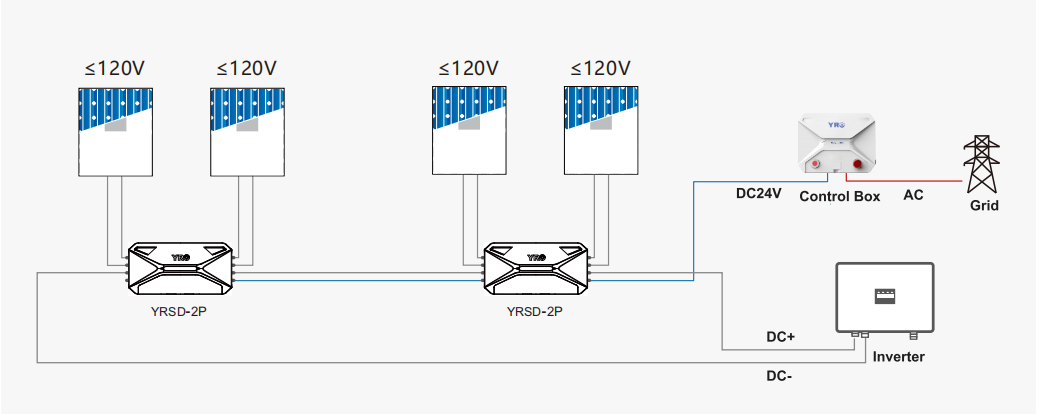

YRSD-2P 2-to-1 wiring
YRSD-1P/2P Series

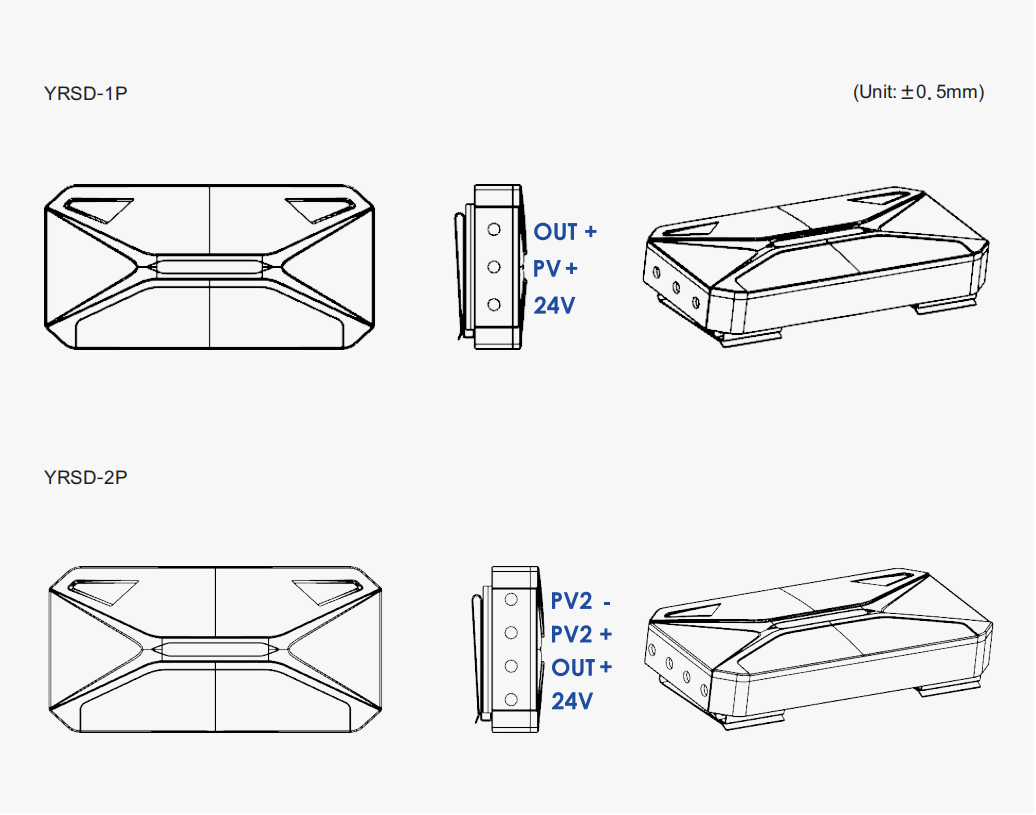

Dimension
